Name: High Precision Harmonic Reduction Gear Strain Wave Reducer Drive Transmission
Brand: Giant Precision
Price: 1 USD

Add to Cart

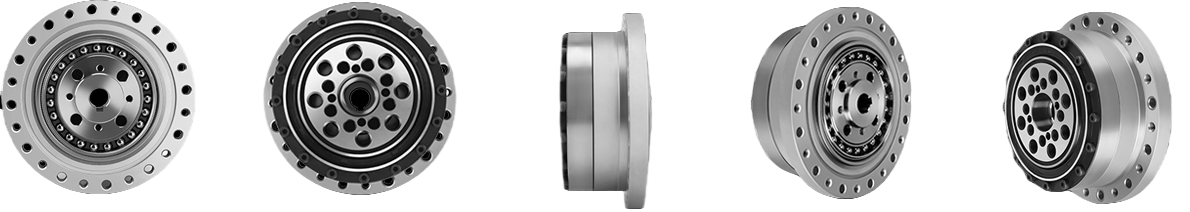

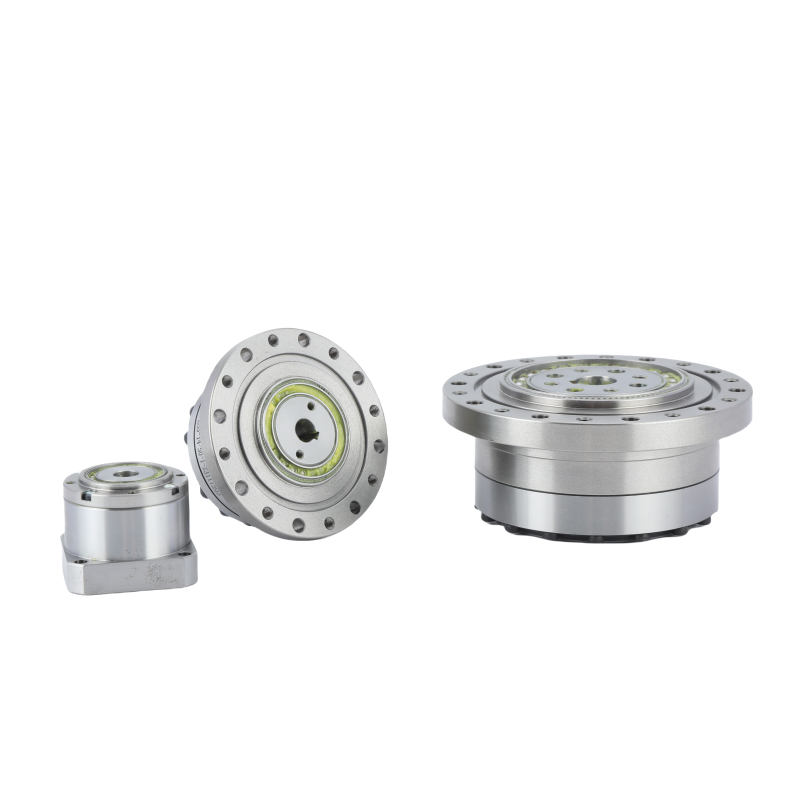

High Precision Harmonic Reduction Gear

Application

Robotics: Industrial Robots, Service Robots, Surgical Robots
Aerospace: Satellite Positioning, Aircraft Control Systems

Medical Equipment: Imaging Devices, Prosthetics and Exoskeletons
Industrial Machinery: Automation Systems, Packaging Machines

Telecommunications: Antenna Positioning Systems

Renewable Energy: Solar Trackers, Wind Turbines

Parameter Table

Model		14
Reduction ratio		50	80	100	120
Rated torque at 2000r/min input	Nm	5.4	7.8	7.8	7.8
Rated torque at 2000r/min input	kgfm	0.55	0.8	0.8	0.8
Permissible peak torque at start and stop	Nm	18	23	28	28
Permissible peak torque at start and stop	kgfm	1.8	2.4	2.9	2.9
Permissible maximum value for average load torque	Nm	6.9	11	11	11
Permissible maximum value for average load torque	kgfm	0.7	1.1	1.1	1.1
Permissible maximum momentary torque	Nm	35	47	54	54
Permissible maximum momentary torque	kgfm	3.6	4.8	5.5	5.5
Permissible maximum input rotational speed(Grease)	r/min	8500
Permissible average input rotational speed(Grease)	r/min	3500
Backlash	Arc Sec	≤20
Weight	kg	0.51
Design life	Hour	10000	15000	15000	15000

	Key Attributes of LSS - II Model 14 Harmonic Gear Units
	Product	Model 14 Harmonic Drive

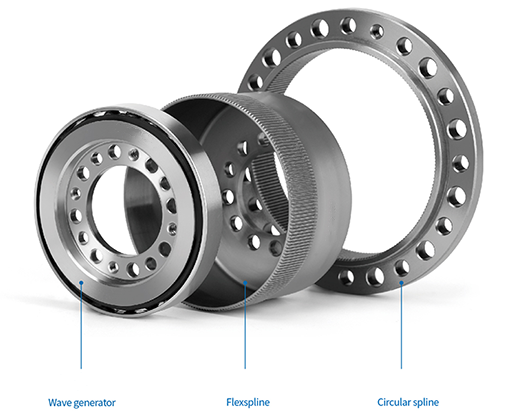

	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	3500 r/min
	Max Input Speed	8500 r/min
	Design Life	15000 hours
	Model	14
	Weight	0.51 kg
	Warranty	1 Year

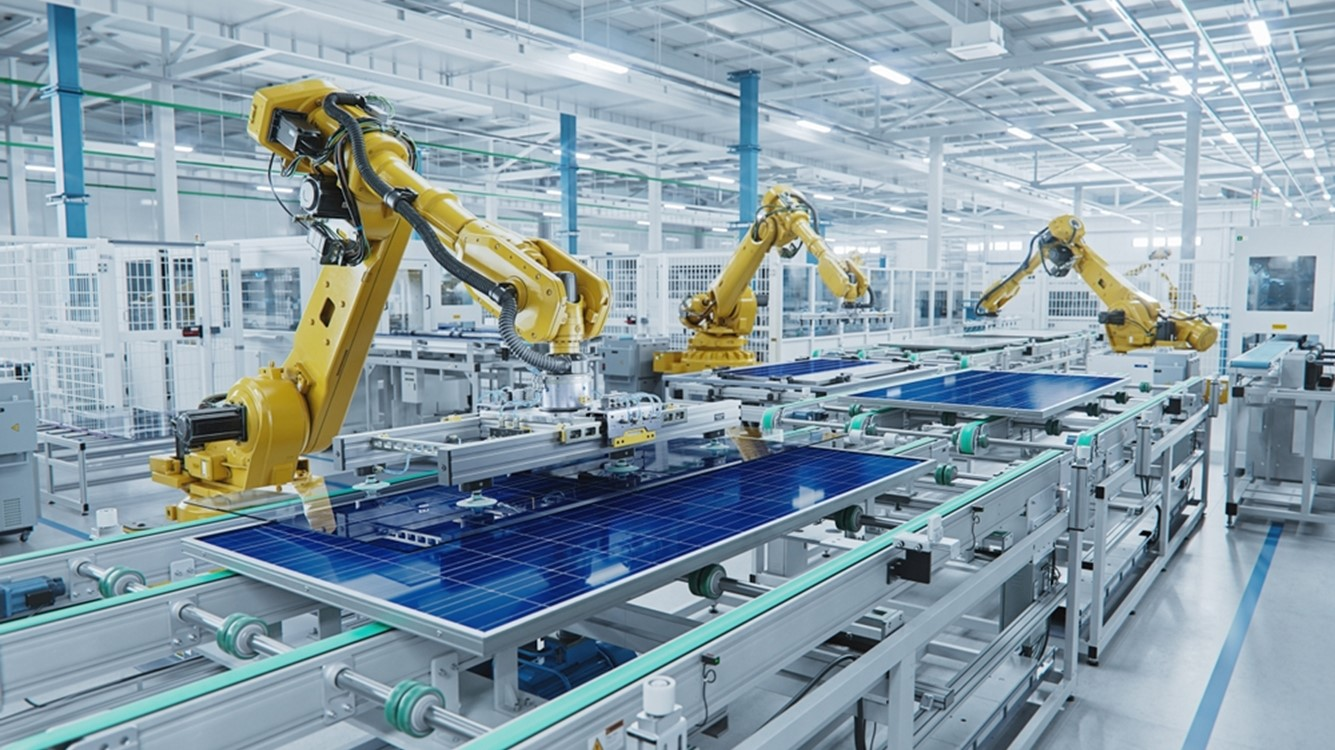

Applications


Manufacturing Systems	Huamnoid Robots	Semiconductor System
