High Gear Reduction Ratio Rigidity RV - C Series RV Speed Reducer Gearbox For Robotics

RV reducer is a new transmission mechanism developed from traditional cycloid gearbox and planetary gearbox. It has the advantages of compact structure, large transmission, long service life, stable precision and high efficiency.

The rotary vector reducer is the core component of industrial robots, and the transmission efficiency is undoubtedly an important indicator of transmission performance. In addition, the assembly dimensional chain leads to clearance between parts, which can have a certain impact on the transmission efficiency.

Key Features

• Hollow shaft construction
• Backlash less than 1 arc.min.
• Lost motion less than 1 arc.min.

Specifications

	Specification	Output Torque kgf-m(Nm)
	10	10(98)
	27	27(265)
	50	50(490)
	100	100(980)
	120	120(1176)
	200	200(1961)
	320	320(3136)
	400	400(3920)
	500	500(4900)

Parameters table of RV - C series

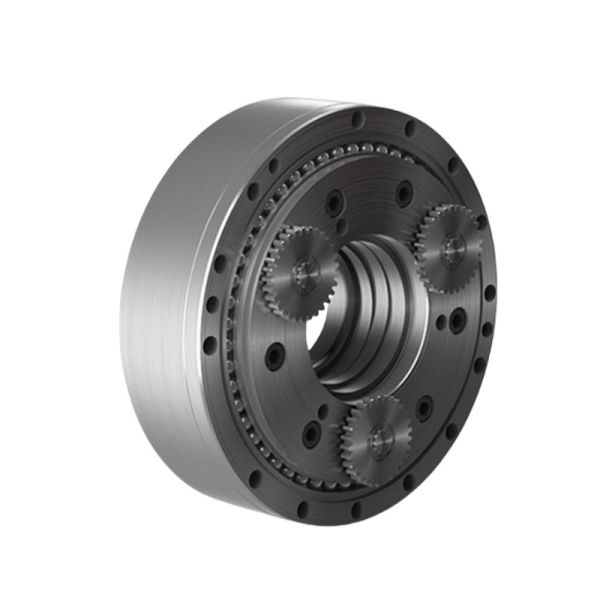

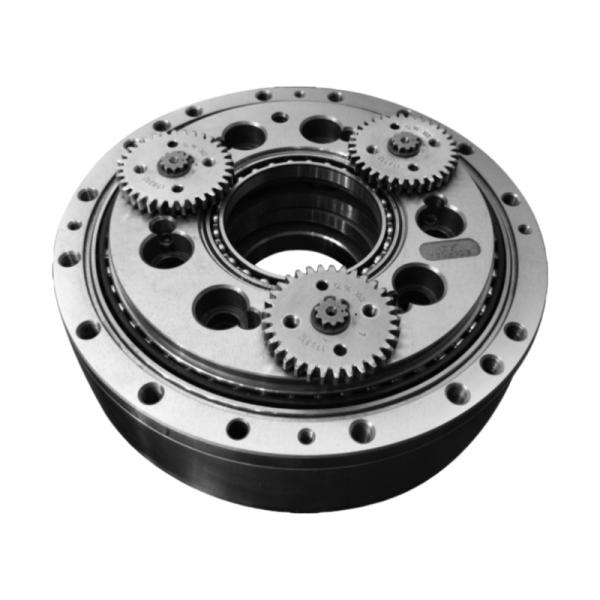

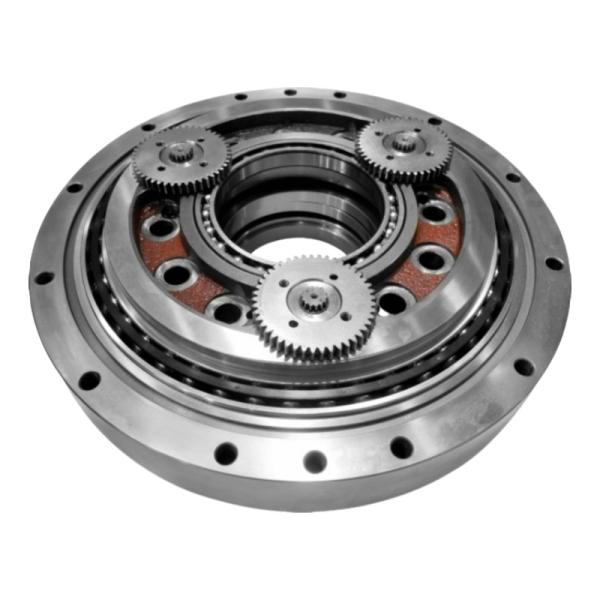

Detailed Images

Application

• Multi Tasking Machine Tool
• Stacker Crane
• Double-column Machining Centers
• Trunnion Table

Suzhou Giant Precision Industry Co., Ltd. is a technical-service enterprise specializing in keeping on researching core technologies and developing high precision transmission products. We mainly provide strain wave reducers, RV reducers, rotary actuator, planetary reducers, electric grippers.

Currently, our products have been widely used in a variety of industrial sectors, such as manipulator, industrial robots, CNC machine tool, printing equipment, textile machine, packaging machinery, non-standard automation, medical equipment, laser cutting, welding, automobile manufacturing, satellite communications, metal processing, pharmaceutical industry, etc.

Our mission is to adhere to our service philosophy, put customer value in our first place, to provide high-quality products, professional technical support and diverse services.
