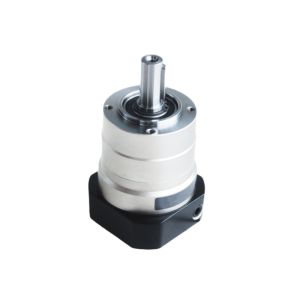

Mechanism Planetary Reducer Hollow Shaft Mounting Low Backlash Planetary Gearing

Planetary reducer also known as a planetary gear system or epicyclic gear train, is a type of gear mechanism consisting of one or more outer gears (planet gears) revolving around a central (sun) gear. Typically, these systems also include a ring gear (annulus) that meshes with the planet gears. The planet gears are mounted on a movable carrier which also connects to the output shaft of the gearbox. Here's a breakdown of its components and functions:

Sun Gear The central gear around which the planet gears revolve.

Planet Gears Multiple gears that revolve around the sun gear and mesh with both the sun gear and the ring gear.

Ring Gear (Annulus) An outer gear that encircles the planet gears and meshes with them.

Planet Carrier A structure that holds the planet gears in place as they rotate around the sun gear.

Specification of NE Series Planetary Reducer

Specification		Segment number	Ratio	NE070	NE090	NE120	NE155	NE205	NE235
Rated output torque	Nm	single	3	50	120	190	320	550	1080
			4	45	130	270	510	990	1610
			5	55	150	310	610	1140	1900
			6	50	140	290	570	1040	1800
			7	45	130	280	520	1040	1710
			8	40	110	240	470	950	1520
			9	35	95	210	420	850	1420
			10	35	95	210	420	850	1420
		double	15	50	120	190	320	550	1080
			16	—	—	—	—	—	—
			20	45	130	270	510	990	1610
			25	55	150	310	610	1140	1900
			30	50	140	290	570	1040	1800
			35	45	130	280	520	1040	1710
			40	40	110	240	470	950	1520
			45	35	95	210	420	850	1420
			50	55	150	310	610	1140	1900
			60	50	140	290	570	1040	1800
			70	45	130	280	520	1040	1710
			80	40	110	240	470	950	1520
			90	35	95	210	420	850	1420
			100	35	95	210	420	850	1420
Rotary inertia	Kg.cm³	single	3	0.16	0.61	3.25	9.21	28.98	69.61
			4	0.14	0.48	2.74	7.54	23.67	54.37
			5	0.13	0.47	2.71	7.42	23.29	53.27
			6	0.13	0.45	2.65	7.25	22.75	51.72
			7	0.13	0.45	2.62	7.14	22.48	50.97
			8	0.13	0.44	2.58	7.07	22.59	50.84
			9	0.13	0.44	2.57	7.04	22.53	50.63
			10	0.13	0.44	2.57	7.03	22.51	50.56
		double	15	0.03	0.13	0.47	2.71	7.42	23.29
			16	—	—	—	—	—	—
			20	0.03	0.13	0.47	2.71	7.42	23.29
			25	0.03	0.13	0.47	2.71	7.42	23.29
			30	0.03	0.13	0.47	2.71	7.42	23.29
			35	0.03	0.13	0.47	2.71	7.42	23.29
			40	0.03	0.13	0.47	2.71	7.42	23.29
			45	0.03	0.13	0.47	2.71	7.42	23.29
			50	0.03	0.13	0.44	2.57	7.03	22.51
			60	0.03	0.13	0.44	2.57	7.03	22.51
			70	0.03	0.13	0.44	2.57	7.03	22.51
			80	0.03	0.13	0.44	2.57	7.03	22.51
			90	0.03	0.13	0.44	2.57	7.03	22.51
			100	0.03	0.13	0.44	2.57	7.03	22.51

Drawings of NF Series Planetary Reducer

Parameters Table of NE Series Planetary Reducer		Segment number	Ratio	NE070	NE090	NE120	NE155	NE205	NE235
Max acceleration torque	Nm	1,2	1.8 times rated output torque
Emergency stop torque	Nm	1,2	3 times rated output torque
Rated input speed	rmp	1	3~10	5000	4000	4000	3000	3000	2000
Rated input speed	rmp	2	15~100	5000	4000	4000	3000	3000	2000
Max input speed	rmp	1	3~10	10000	8000	8000	6000	6000	4000
Max input speed	rmp	2	15~100	10000	8000	8000	6000	6000	4000
Ultraprecise backlash	arcmin	1	3~10	—	≤1	≤1	≤1	≤1	≤1
Ultraprecise backlash	arcmin	2	15~100	—	—	≤3	≤3	≤3	≤3
Precise backlash	arcmin	1	3~10	≤3	≤3	≤3	≤3	≤3	≤3
Precise backlash	arcmin	2	15~100	≤5	≤5	≤5	≤5	≤5	≤5
Standard backlash	arcmin	1	3~10	≤5	≤5	≤5	≤5	≤5	≤5
Standard backlash	arcmin	2	15~100	≤7	≤7	≤7	≤7	≤7	≤7
Orsional rigidity	Nm/arcmin	1,2	3~100	8	14	27	52	148	305
Max. radial Force	N	1,2	3~100	1730	3250	7000	9600	14500	27800
Max. axial Force	N	1,2	3~100	865	1625	3500	4800	7250	13900
Tilting moment	Nm	1,2	3~100	77	152	325	530	920	1840
Service Life	hr	1,2	3~100	20000hr(continuous operation 10000hr)
Efficiency	%	1	3~10	≥97%
Efficiency	%	2	15~100	≥94%
Weight	kg	1	3~10	1.4	3.3	6.9	13.0	31.0	48.0
Weight	kg	2	15~100	1.6	4.7	8.7	17.0	35.0	60.0
Operating Temperature	℃	1,2	3~100	-10℃-90℃
Lubrication		1,2	3~100	Synthetic grease
Protection Class		1,2	3~100	IP65
Mounting Position		1,2	3~100	Any direction
Noise Level (N1=3000rpm,Non-Loaded)	dB(A)	1	3~10	≤58	≤60	≤63	≤65	≤67	≤70
Noise Level (N1=3000rpm,Non-Loaded)	dB(A)	2	15~100	≤58	≤60	≤63	≤65	≤67	≤70

Application of NE Series Planetary Reducer
